Sequence diagram showing interaction between components at a high level.

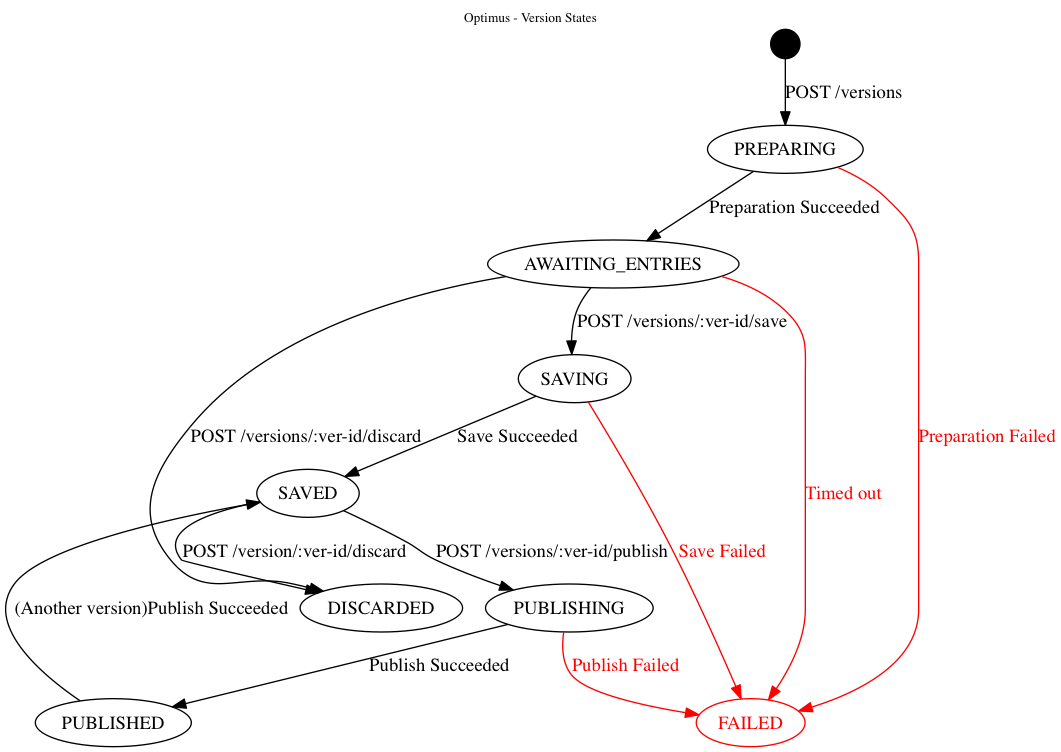

Possible states for a version

A dataset version can be in one of the following states. The state of a version is described by the status attribute.

States

Status Description
PREPARING A request was made to create a new version (POST /versions), and the system is currently performing a set of pre-requisite operations before being able to accept data upload.
AWAITING_ENTRIES The system has completed all the pre-requisite operations required for the version and is now ready to accept data for the version.
SAVING A request was made to save the version (POST /versions/:version/save). The system is currently performing operations required to mark the version as SAVED and will no longer accept updates to this version.
SAVED The version is now final and ready to be published.
PUBLISHING A request was made to publish a new version (POST /version/:version/publish) and the system is now performing operations required to publish the version.
PUBLISHED The system has successfully published the version. From this point on data in this version of the dataset will be used to serve all requests made to retrieve data
DISCARDED A request was received to discard or abort this version (POST /versions/:version/discard). This version can no longer be published for consumption.
FAILED One of the operations in the workflow failed. Refer to the state diagram above for more info.

Actors

The Optimus API is generic and can be used by any type of client. For the purposes of documentation, lets assume the following actors.

Actor Description
Initiator Initiator is responsible for creating a new version of the dataset and co-ordinating data load into a version.
Loader Loader is responsible to load data to a version using the POST /datasets/:dataset[/tables/:table/entries] API. There can be several instances of the Loader loading data to a version in parallel.
API Optimus API.

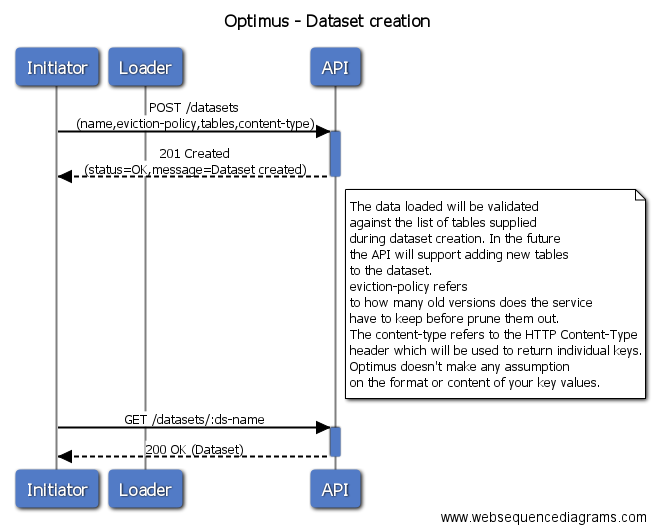

Creating Datasets

POST /datasets

Create a new dataset.

Creating datasets

POST /datasets

{ "name": "product-recs",
  "eviction-policy": { "type": "KEEP_LAST_X_VERSIONS", "versions": 10},
  "content-type": "application/json",
  "tables": ["users", "recommendations", "scores"]
}

---

HTTP/1.1 201 Created
Location: /datasets/XYZ123

{ "status": "OK", "message": "dataset created" }

eviction-policy refers to how many old versions the service should keep before pruning them out.

The content-type refers to the HTTP Content-Type header which will be used to return individual key values. Optimus doesn’t make any assumptions about the format or content of your key values.

GET /datasets/:name

Retrieve the current status of the datasets

GET /datasets/recommendations

---

HTTP/1.1 200 Created

{ "name": "product-recommendations",
  "content-type": "application/json",
  "eviction-policy": { "type": "KEEP_LAST_X_VERSIONS", "versions": 10},
  "tables": ["users", "recommendations", "scores"],
  "active-version": { "id": "XYZ123", "created-at": 123456789076},
  "available-versions: [
    { "id": "XYZ122", "created-at": 123456789076},
    { "id": "XYZ121", "created-at": 123446789076},
    { "id": "XYZ120", "created-at": 123436789076},
    { "id": "XYZ119", "created-at": 123426789076}
  ]
}

Here you can see the current status of a dataset and which version is being pointed at.

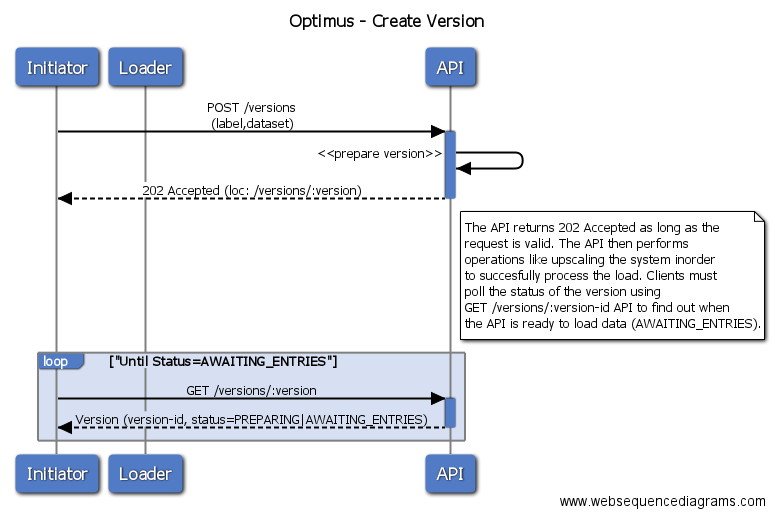

Creating a Version

In order to upload new data a new version must be created.

Creating version

POST /versions

Creates a logical container for the values which are going to be uploaded.

The dataset which will be updated must be provided while initiating a version.

POST /versions

{ "dataset": "product-recs" }

---

HTTP/1.1 202 Accepted
Location: /versions/XYZ123

{ "status": "OK", "message": "Request accepted", "id": "XYZ123" }

At this stage the service isn’t ready yet to accept updates, this operation might take a few minutes as resources might need to be scaled-up in order to service a large amount of updates.

GET /versions/:id

Returns the current status of the given version if found, HTTP 404 if not found.

GET /versions/XYZ123

---

HTTP/1.1 200 OK


{
  "version": "XYZ123",
  "label": "v1.7.4-20161123",
  "dataset": "product-recs",
  "createdAt": 123456789076,
  "status": "PREPARING"
}

The version can be in different states, but when marked as AWAITING_ENTRIES this signals that it is ready to receive updates for the given dataset.

For a list of all possible states refer to the state diagram above.

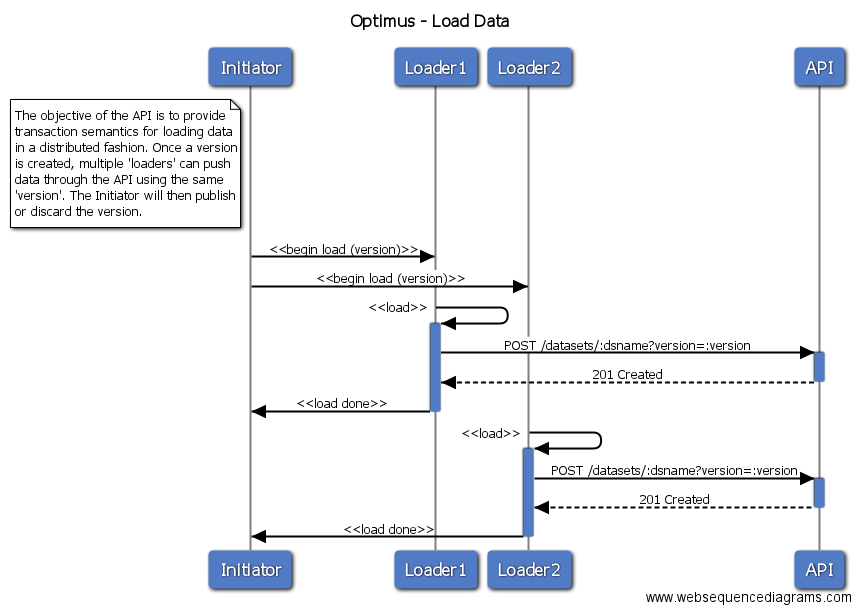

Loading Data

Once the dataset has been declared and the version is ready (AWAITING_ENTRIES), you can start pushing key/value pairs in batches and in parallel.

Loading Data

POST /datasets/:dataset[/tables/:table/entries/:key]?version=XYZ123
POST /datasets/product-recs

[{ "table": "recommendations", "key": "key1", "value": "value1"},
 { "table": "recommendations", "key": "key2", "value": "value2"},
 { "table": "recommendations", "key": "key3", "value": "value3"},
 { "table": "recommendations", "key": "keyN", "value": "valueN"}]

---

HTTP/1.1 201 Created

{ "status": "OK",
  "items-accepted": 4,
  "items-rejected": 0}

Or:

POST /datasets/product-recommendations/tables/recommendations/entries

[{ "key": "key1", "value": "value1"},
 { "key": "key2", "value": "value2"},
 { "key": "key3", "value": "value3"},
 { "key": "keyN", "value": "valueN"}]

---

HTTP/1.1 201 Created

{ "status": "OK",
  "items-accepted": 4,
  "items-rejected": 0}

Or:

POST /datasets/product-recs/tables/recommendations/entries/key1

{"value": "value1"}

---

HTTP/1.1 201 Created

{ "status": "OK",
  "items-accepted": 1,
  "items-rejected": 0}

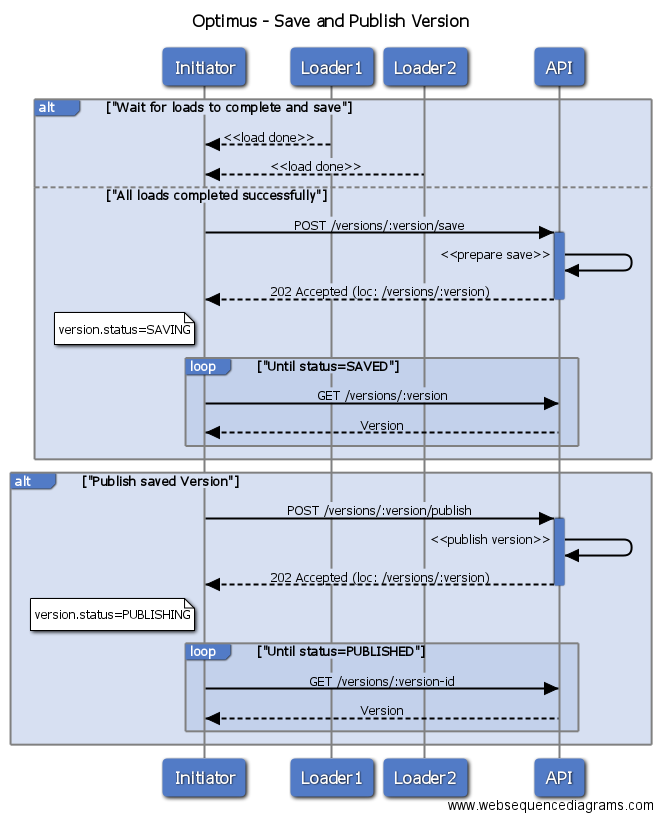

Saving and Publishing a Version

Save and Publish

Once all items have been loaded under a version, you can save the version or instead explicitly void it (See Discarding a Version below).

Once the version is saved successfully, the API will stop accepting updates. You can perform any checks/validations at this stage before publishing the version.

POST /versions/:version/save

If all values have been uploaded successfully then you can attempt to save a version.

POST /versions/XYZ123/save


---

HTTP/1.1 202 Accepted
Location: /versions/XYZ123

{ "status": "OK", "message": "Save in progress", "id": "XYZ123" }

The save operation might take a while to be executed as there are a number of verification and optimization steps which need to be executed in this phase. You can track the progress of the commit with GET /versions/:id.

At this point the save will either fail (for example because the verification process failed), or succeed. If it fails then the version will be marked as FAILED and rolled back. If it succeeds then it will be marked as SAVED and it will be ready to be used as new dataset.

Once a version has been saved successfully, it is ready to be PUBLISHED as the new dataset.

POST /versions/:version/publish

To publish a specific version you can:

POST /versions/XYZ123/Publish

---

HTTP/1.1 202 Accepted
Location: /versions/XYZ123

{ "status": "OK", "message": "Publish in progress"}

The publish operation might take a while to be executed as there are a number of verification and optimization steps which need to be executed in this phase. During this phase the status of the version will be PUBLISHING. You can track the progress of the commit with GET /versions/:id.

Once the status of the version is set to PUBLISHED, all data requests will be served with values from the newly published version of the dataset.

When a new version is PUBLISHED, the system will mark the previously published version of the datasets as SAVED and mark the given version as PUBLISHED.

From this moment any GET requests which involve keys of these datasets will be resolved to this version.

All versions for a given dataset can be listed via GET /versions?dataset=ds1.

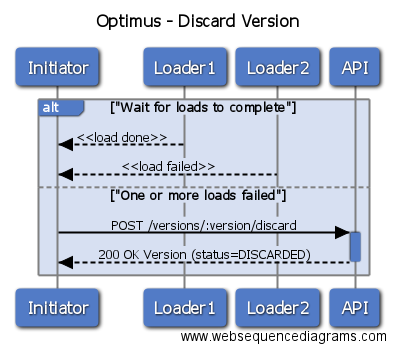

Discarding a Version

If for any reason you realize that a version doesn’t contain the right set of values (maybe because the upload job failed) you can explicitly void the version by discarding it.

Discard

POST /versions/:version/discard

POST /versions/XYZ123/discard

---

HTTP/1.1 200 OK
Location: /versions/XYZ123

{
  "version": "XYZ123",
  "label": "v1.7.4-20161123",
  "dataset": "product-recs",
  "createdAt": 123456789076,
  "status": "DISCARDED"
}

Once a version has been rolled back, it cannot be published as the new version for a dataset.

Retrieving data

You can retrieve the current value of a key in a table within a dataset with the following request:

GET /datasets/:dataset/tables/:table/entries/:key

When getting a single key the Content-type of the response will be the one assigned during the dataset creation.

GET /datasets/product-recs/tables/recommendations/entries/key1

---

HTTP/1.1 200 OK
Content-type: text/plain

value1

Alternatively, you can request a number of keys in a single GET.

GET /datasets/product-recs/tables/recommendations/entries

[{ "key": "key1},
 { "key": "key2},
 { "key": "key3},
 { "key": "keyN}]


---

HTTP/1.1 200 OK
Content-type: application/json

{
  "status": "OK",
  "keys-found": 4,
  "keys-missing": 0,
  "data": {
    "key1": "value1",
    "key2": "value2",
    "key3": "value3",
    "keyN": "valueN"
  }
}
