Optimus API is a key-value store which allows Data Scientists to save and retrieve reference data and model coefficients which are calculated across millions of users or items. The API resembles a common key/value store, however the main difference with other REST based key/value stores is that Optimus provides transactional semantics, which means that while an update of a new set of keys is in progress no user will be able to observe the new values until all keys have been successfully stored and committed.

Motivations

Many of the data-driven services Data Scientists develop are simple lookups of some coefficient or a number of items predicted in advance for a given user. These factors are calculated at regular intervals - typically nightly or hourly - uploaded to a database and exposed via a REST based service. While the service might have some additional logic, typically the added value for the business is in the data itself. While API versioning and deployment strategies to roll-forward and roll-back are common practice in SOA systems, we haven’t found much support for similar strategies for data. Conventional key-value stores do not provide features which allow fine grained control over the publishing of large-scale data.

When the API which exposes a given set of factors is a mere lookup to a database, the value of the API completely resides within the data itself. However when data changes over time, we should be able to control when a new set of values is ready to be consumed by API users and provide a quick and easy way to roll back a set of coefficients and values when we realise the data is wrong or skewed for some reason.

So the main motivation for this service is to provide transactional isolation semantics together with version control systems features to a REST based key value store. Updates are typically performed across millions of keys in a single transaction which can span over several minutes (or hours). No consumer should ever see uncommitted values.

This service doesn’t support incremental updates for a small number of keys. For such use cases, we recommend using DynamoDB directly (or similar products).

High level design

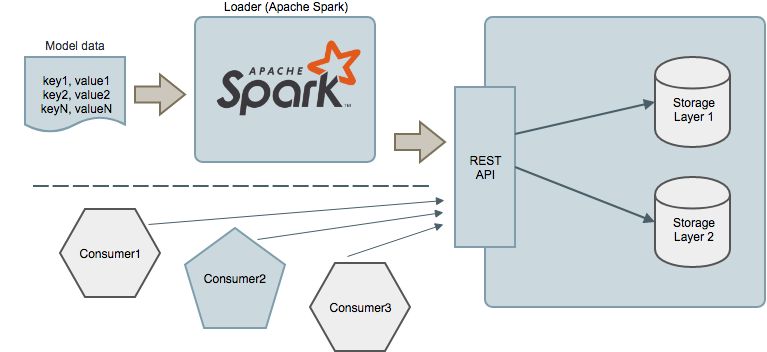

From a high level we have the following entities:

• Datasets: A dataset is a collection of tables which are semantically linked. A dataset may contain several tables which are updated all together in the same version. If a data rollback is necessary, all tables within the dataset are rolled back at the same time, it is NOT possible to rollback individual tables in a dataset.

• Tables: A table is a collection of entries.

• Entries: An entry is a key/value pair. APIs provide facilities to read individual keys as well as group of keys.

• Versions: Datasets are immutable by default and the only way to update a dataset is by creating a new version of the Dataset. A newly created version is effectively in a draft state (AWAITING_ENTRIES) and ready to accept new entries. Once the entries are loaded, the version can then be SAVED at which point the version will stop accepting new entries. Any reviews or validations can be carried out at this stage. Once the version is SAVED it can be PUBLISHED or DISCARDED. To rollback the dataset to a previous version, just re-publish the previous version.

There are a number of capabilities and technical goals we would like to achieve with this system:

Achieving Transaction Isolation using Data Versioning for models with millions of keys

As described above these models can contain large amounts of data. Some datasets have invariant relations between values of the same set which must be preserved even while a model is being updated. From a consumer point of view, we would like to either see all the old values or all the new values, and it should never be possible to observe two values from two different versions at the same time. To achieve this we have introduced the concept of data versions which define the boundaries of when certain data is ready to be consumed.

The entire dataset must be updated when a new version of a dataset is created. It is not possible to update individual keys. Once the dataset is loaded, the version can be SAVED and PUBLISHED at which point, no more changes can be made. At this point, the system semantically replaces all keys values for a given dataset at once.

When a version is being published, in-flight read requests may return inconsistent results. It is possible to achieve repeatable reads consistency, by explicitly specifying the version-id during read requests. (Optimus API provides an endpoint to lookup the latest active version for a dataset. The GET APIs also return the current active version as a HTTP response header).

Rollback

In some cases it might be necessary to revert to a previous set of values. Reasons for this vary according to particular usage patterns and business cases. But the simplest reason might the that a new set of values may cause unforeseen behaviour in downstream services (like errors). In such cases it is useful to have a single switch to control a logical rollback to a previous version which is known to be stable.

This is very different from an ACID database rollback. It is more like a reverting a change in a Version Control Systems like git. In our case we have to be able to efficiently and rapidly revert millions and millions of values.

Correctness and data integrity

When updating millions of individual values it is hard to establish whether all keys have been written and all their values have preserved their integrity. Optimus is designed to support customized data integrity and correctness checks. In the future, Optimus will provide out of the box strategies to verify data.

Storage agnostic

While our first implementation is based on DynamoDB as backend storage, it is clear that different datasets will have different access patterns and latency requirements. For this reason the design favours a storage agnostic approach whereby - for a specific use case - we could choose a completely different storage system such as: Memcached or Redis to provide lower latency. The choice of the backend storage system should be completely transparent from the user perspective and totally a service optimisation decision. By keeping the choice of which actual storage technology is used in the hands of the Optimus service, we could implement a hierachical storage system where datasets are dynamically spread across different layers with different performance characteristics and where the implementation is completely transparent to the service users.

Model data upload service

As part of the service we provide an Apache Spark based ‘Loader’ which given a datafile with a specific format, it will upload all the key-value pairs to the APIs. This should greatly alleviate the burden of creating custom solutions to upload millions of keys while maintaining data integrity in the face of partial failures and retries.

Garbage Collection

Every model will be stored with multiple versions, for example daily refreshes. Over time old models can be removed in order to save storage space. This operation is completely automatic and done by the service so that no additional work is required to perform the cleanup.

API overview (Entries, Tables, Datasets and Versions)

Here is just an overview of the API provided by the service and the workflow to use in order to upload an use a dataset.

Entries are Key-Value pairs and are the lowest unit of storage supported by the API. Entries are logically grouped into Tables. These depend on your business domain and can be things like users, recommendations, scores etc.

Datasets are a logical namespace for one or more Tables. The Dataset is the unit of update. Tables can contain many (millions) of Entries, which can be retrieved individually by supplying the corresponding Key. However, updates can only be done at the Dataset level.

The API provides a facility to move from one Version of the dataset to another where the two sets of TableName::Key might be exactly the same, or completely different. No restriction is applied to the transition.

Here is a list of entities and the operations supported by the API.
